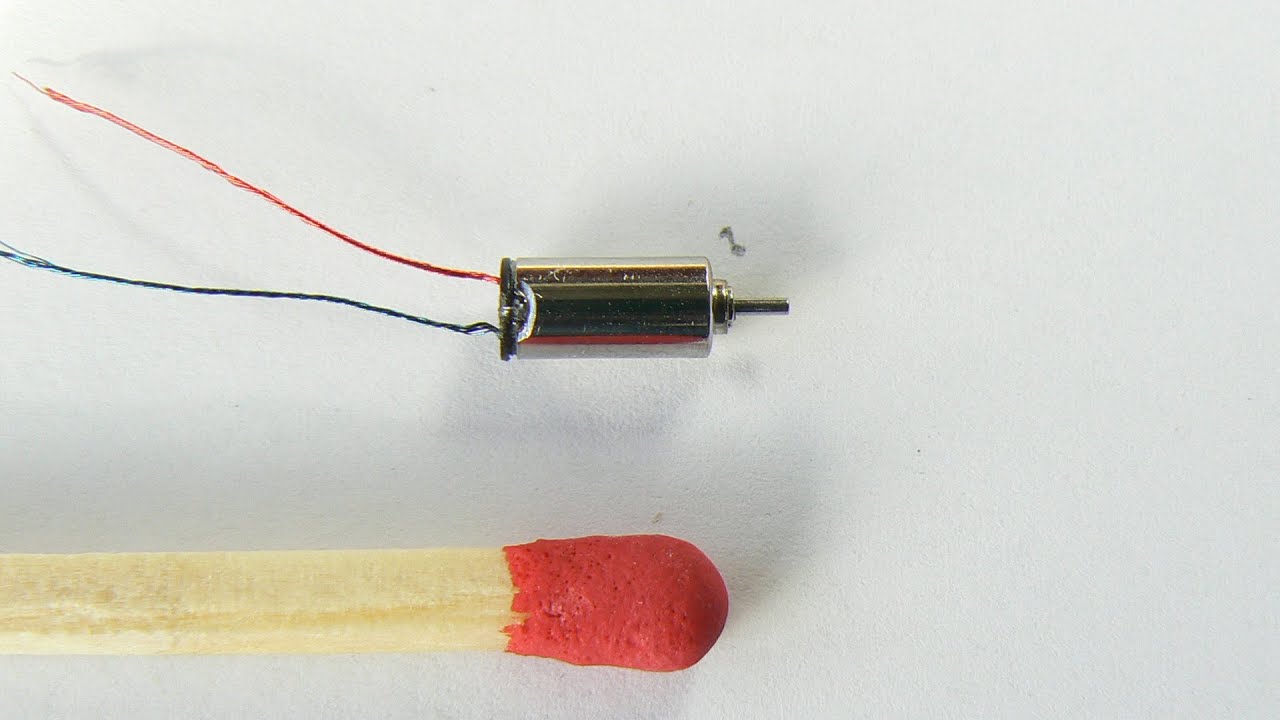

Coreless motors are lower in weight, have higher efficiency, and have a more comprehensive performance range. The design, on the other hand, is new, and the guarantees are limited. Coreless motors are a subset of direct current motors. These motors are utilized in applications that need a compact iron core. They might be cylindrical or disc-shaped.
A significant benefit is a high efficiency. The lack of a ferromagnetic core in coreless motors implies that iron losses are eliminated, resulting in much-improved efficiency compared to standard iron core direct current motors. The rotor mass and inertia of coreless motors are minimized, resulting in faster acceleration and deceleration. These are critical characteristics in high-dynamic applications.
The main advantage of a coreless motor is its excellent power-to-weight ratio. Coreless engines function extremely effectively since the heavy iron core is removed, making them suitable for situations where the motor must give the highest amount of torque in a restricted area.
Construction of Coreless Motors
Coreless motor technology has various benefits over typical iron core motor manufacturing. First, iron removal decreases the rotor’s bulk and inertia, allowing for high-speed acceleration and deceleration speeds. And, since there is no iron, there are no iron losses, enabling coreless designs to have much greater efficiency (up to 90%) than standard DC motors. The coreless design also minimizes winding inductance, which reduces sparking between the brushes and the commutator, extending motor life and lowering electromagnetic interference (EMI).
Coreless motor efficiency rate
These motors are also quite efficient. Because coreless engines have lower current losses, they are more efficient than cored motors. Free running currents may fall to 50mA, a significant benefit when a battery powers the gadget. Coreless engines are available from wholesale suppliers.
The electromagnetic fields produced by coreless micro dc motors are minimal. If an engine generates a lot of EMF, it might interfere with other EM signals. Electromagnetic interference (EMI) may devastate a mobile phone or other wireless equipment. The removal of the iron core reduces rotor inductance and arcing. Because the wiring topology of a coreless design produces less arc, lower sparking levels provide less EMI. Arching also generates electrical noise and shortens the life of brushes.
Advantages of coreless motor
- This design enables a low inertia, high-efficiency motor. Coreless motors accelerate and decelerate substantially faster than typical motors.
- By removing the iron rotor, motor torque or cogging is reduced.
- Even at low speeds, the motor runs smoothly. The absence of iron in the rotor decreases the motor’s overall mass.
- Noise has been reduced.
- High Efficiency: Up to 85% efficiency is feasible with less heat created during operation, compared to > 50 percentage points for an iron core motor.
- Brush life is extended since the time constant is low, resulting in a speedier reaction.
Application of coreless motor
Coreless motors are the best choice for a wide variety of dynamic applications, including a variety of robotics projects, including compact positioning systems and pan/tilt systems. Coreless motors are also beneficial for various medical devices, including prostheses, insulin pumps, X-ray machines, and laboratory equipment.
When looking for a Coreless motor that is less in weight, more efficient, and has a broader performance range, you will notice several possibilities. Coreless engines are available from wholesale suppliers. Take your time in locating wholesale suppliers of coreless motors that are a suitable fit for the area in which you want to utilize them since this is critical to their durability.
